Specs at a glance
-
Accuracy
(Pt100) <= 0,1 K (HART, FF, PA)
(Pt100) <= 0,18 °F (HART, FF, PA)
Field of application

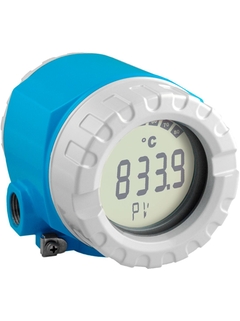

Unsurpassed reliability, accuracy and long-term stability in critical processes. The remote configurable transmitter transfers and monitors converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART®, FOUNDATION Fieldbus™-, PROFIBUS® PA-communication. It visualizes the signals on its own backlit display. A field housing allows a direct connection in harsh process areas as well as in hygienic applications as option.
Universal input usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)
HART® protocol for converting various input signals to a scalable 4 to 20 mA analog output signal. Operating the transmitter using handheld terminals Field Xpert SFX350/370, field communicator 475 or remotely via PC
FOUNDATION Fieldbus™ ITK 6.1.2
PROFIBUS® PA Profile 3.02

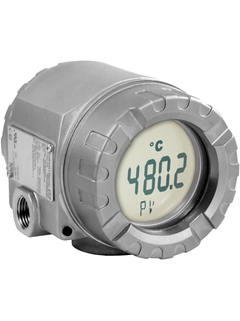

Optional: stainless steel housing for hygienic or Ex d application
Benefits
High reliability in harsh industrial environments due to dual compartment housing and compact, fully potted electronics
Backlit display with large measured value, bar graph and status condition indication
Diagnostics information according to NAMUR NE107
International approvals such as FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof); marine approval
SIL certification as per IEC 61508:2010
Galvanic isolation 2 kV (sensor input / current output)
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Could also interest you
170 documents
-
-
Technical Information (TI)
TMT162R
RTD assembly with HART®-, FOUNDATION Fieldbus™- or PROFIBUS® PA field
transmitterEN 01/04/200901/08/2002Language:
English
Version:
01/04/2009
File size:
1.1 MB
File name:
TI266ten_0409.pdf
-
-
-
Technical Information (TI)
iTEMP TMT162
Temperature field transmitter
FOUNDATION Fieldbus™ or PROFIBUS® PA protocolEN 30/06/202020/12/201818/08/201518/06/201215/06/2011Language:
English
Version:
30/06/2020
File size:
2.8 MB
File name:
TI00086REN_0520.pdf
-
-
-
Technical Information (TI)
TI iTEMP TMT162
Temperature field transmitter
with HART® protocolEN 28/03/202422/01/202116/10/201701/07/2017Language:
English
Version:
28/03/2024
File size:
3.1 MB
File name:
TI01344TEN_0424-00.pdf
-
-
-
Operating Instruction (BA)
BA iTEMP TMT162
Temperature field transmitter
HART® communicationEN 26/01/202423/11/202330/04/202116/10/2017Language:
English
Version:
26/01/2024
File size:
4.4 MB
File name:
BA01801TEN_0424-00.pdf
-
-
-
Operating Instruction (BA)
BA iTEMP TMT162
Dual-input temperature transmitter with PROFIBUS<sup>®</sup>
PA protocolEN 30/09/202320/09/201215/06/201101/12/200901/02/2009Language:
English
Version:
30/09/2023
File size:
4 MB
File name:
BA00275REN_0323-00.pdf
-
-
-
Operating Instruction (BA)
BA iTEMP TMT162
Dual-input temperature field transmitter with FOUNDATION Fieldbus™
protocolEN 30/09/202326/01/201511/10/201201/12/201028/11/2006Language:
English
Version:
30/09/2023
File size:
4.4 MB
File name:
BA00224REN_1623-00.pdf
-
-
-
Operating Instruction (BA)
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC SoftwareEN 02/02/2005Language:
English
Version:
02/02/2005
File size:
883.5 KB
File name:
Ba213ra2.pdf
-
-
-
Operating Instruction (BA)
Temperature field transmitter iTEMP TMT162, HART 5 specification
Dual input temperature field transmitter
EN 23/01/201921/11/201201/04/201014/12/200621/01/2005Language:
English
Version:
23/01/2019
File size:
5.2 MB
File name:
BA00132ra3_1419.pdf
-
-
-
Operating Instruction (BA)
Operating Manuals ReadWin 2000 (GB)
Operating Manuals ReadWin 2000
EN 01/01/201031/10/200820/06/200725/07/2001Language:
English
Version:
01/01/2010
File size:
6.3 MB
File name:
BA137Ren_0110.pdf
-
-
-
Short Instruction (KA)
KA iTEMP TMT162
Temperature field transmitter
HART® communicationEN 15/04/202420/09/202321/08/201701/01/201015/03/2007Language:
English
Version:
15/04/2024
File size:
2.9 MB
File name:
KA00250REN_0424-00.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Display fitt. kit field housing
-
Housing/housing accessories
Drawing numberOrder code271310423 -
-
Cover latch spares kit field housing
-
Cable/cable accessories
Drawing numberOrder code751004948 -
-
O-Ring 88x3 EPDM 70 PTFE-coated
-
Display
Drawing numberOrder code671158816 -
-
O-Ring 88x3 HNBR 70o Shore PTFE
-
Display
Drawing numberOrder code671502617 -
-
Spare RFID TAG
-
further parts
Order codeXPRFID- -
-
Housing TMT162
-
Terminal module
Drawing numberOrder code1TMT162G- -
-
Mounting bracket st. steel wall/2" tube
Order code51004823 -
Mounting bracket 2"tube stainless steel
Order code51006412 -
Cable entry M20x1.5
Drawing numberOrder code851004949 -
Adapter M20x1.5 exter./M24x1.5 intern.VA
Drawing numberOrder code851004915 -
Cable gland NPT1/2, D4.5-8.5 IP68
Drawing numberOrder code851006845 -
Cable gland M20x1.5 ATEX/IECEx
Drawing numberOrder code871638066 -
Service
Order codeDIENST- -
Plug for Thermometer + Transmitter
Drawing numberOrder code8XPT0002-
