Specs at a glance
-
Max. process pressure (static)
Depending on configuration up to 100 bar
-
Maximum standard immersion length
4.500 mm (177")
-
Max. immersion length on request
4.500 mm (177")
Field of application

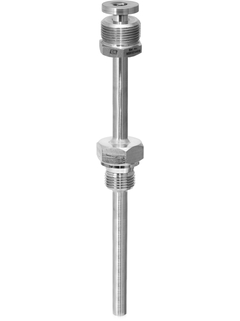

This thermowell designed according to DIN 43772 guarantees a high resistance to most industrial process environments. It is made from pipe or tube and is available in a wide range of diameters and materials. A specially designed thermowell tip ensures fast response times for a more efficient process control. Oversheaths in PTFE or tantalum can withstand extremely corrosive process conditions. It is offered with a variety of process connections: flanges, threads, weld-in or compression fittings.
Protects the temperature sensor against physical and chemical stress
High robustness for challenging process conditions
Pressure range: up to 100 bar (1450 psi)
For use in pipes, containers or tanks
Improved ease of maintenance (sensor replacement without process shutdown) and recalibration of the measuring point
Benefits
Modular configuration according to DIN 43772

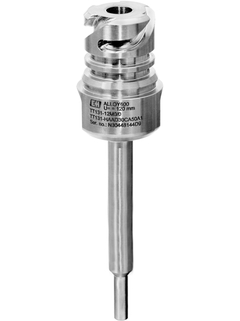

iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration of the insert
-
Extension, immersion length and total length can be chosen according to process requirements
-
Wide choice of dimensions, materials and process connections available
-
Specially designed tip for fast response times
