Specs at a glance
-
Input
1x Puls/Analog
2x RTD/Analog
Loop power supply 24V DC (+/-16%) -
Output
1x 4...20mA
2x digital (Open Collector) -
Display
160 x 80 Dot-Matrix LCD with white backlit
colour change in case of alarm event
active display area 70 x 34 mm -
Calculations
heat quantity and heat quantity difference
Field of application

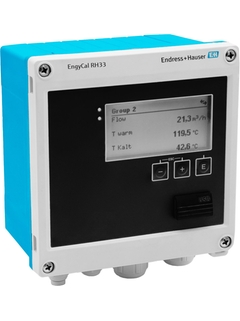

The BTU meter RH33 is used in applications with liquid energy carriers.
It calculates the thermal energy of water acc. to EN1434, glycol/water mixtures or other fluids such as thermal oils. Temperature sensor matching using calibrated temperature sensors is done in the device.
Potential for cost savings can be shown by using the software available as an accessory.
The device has a custody transfer approval and allows bi-directional measurement, e.g. charging/discharging of a heat accumulator.
Recording and billing the quantities of heat and cold in:
Heating circuits
Cooling circuits
Combined heating and cooling circuits
Typical application areas in industry, long-distance heat networks and building automation.
Benefits
Transparent energy consumption helps you save on energy costs
Calibrated, electronically paired temperature sensors ensure the highest accuracy and enable replacement of individual temperature sensors even for certified devices in the field (without reapproval!)
Tariff counter for requirements-based billing
Detailed data logging of current and counter values and of error messages, off-limit conditions and changes to operating parameters
Standard models are suitable for connecting and supplying all common volume flow transmitters and temperature measuring points
Remote readout via Ethernet and fieldbuses
Verified and certified reliability and accuracy
