Cerabar PMC71B - pressure transmitter

Cerabar PMC71B - pressure transmitter

Smart pressure transmitter which detects process anomalies like changes in the loop characteristics

PMC71B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

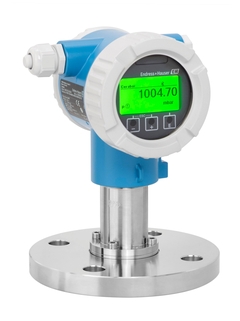

Cerabar PMC71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

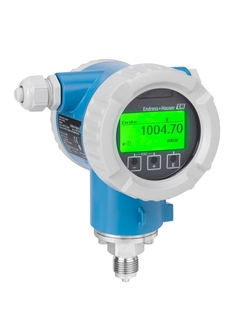

Cerabar PMC71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

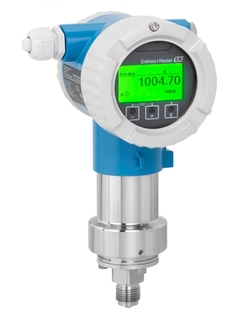

Cerabar PMC71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

Stainless steel version

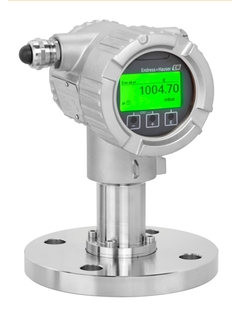

Cerabar PMC71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

High temperature version

Specs at a glance

  • Accuracy

    Standard:
    up to 0.05 %
    Platinum:
    up to 0.025 %

  • Process temperature

    -40°C...+150°C
    (-40°F...+302°F)

  • Pressure measuring range

    100 mbar...40 bar
    (1.5 psi...600 psi)

  • Main wetted parts

    Ceraphire ceramic
    FKM, EPDM, HNBR,
    Perlast, Kalrez, Chemraz

  • Material process membrane

    Ceramic

  • Measuring cell

    100 mbar....40 bar
    (1.5 psi...600 psi)

Field of application

This transmitter belongs to the new Cerabar generation. The device is robust and can be remotely controlled via app on a tablet using a secure Bluetooth connection. It allows condition based maintenance as well.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.

  • Pressure measuring range: up to 40 bar (600 psi)

  • Fully vacuum resistant up to +150°C (302°F) process temperature

  • Accuracy: up to +/- 0.025%

Benefits

  • With Heartbeat Technology you are able to verify the health of the device while the process is running.

  • Simple indication of device status - display changes from green to red when diagnostic messages occur

  • Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

  • Wireless control of the device in hard to reach process areas with the SmartBlue App
