The CYA112 assembly provides rapid and safe sensor installation in open basins, channels or tanks.

Immersion assembly
Flexdip CYA112

Modular assembly for water, wastewater and utilities

CYA112
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

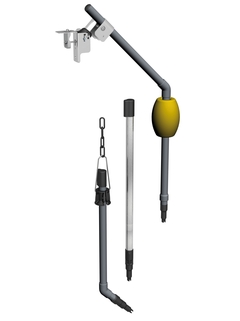

Immersion assembly Flexdip CYA112 ©Endress+Hauser
Immersion assembly Flexdip CYA112 ©Endress+Hauser

Specs at a glance

  • Process temperature

    0 to 60 °C (32 to 140 °F)

Field of application

The Flexdip CYA112 is a modular assembly for sensor immersion in open basins, channels, or tanks. It allows nearly any kind of sensor mounting – chain, fixed, or free-swinging – and features a quick fastener for rapid and safe installation of Memosens or fixed-cable sensors. The assembly provides you with outstanding flexibility and enables you to optimally configure your measurement at low costs.

Flexdip CYA112 is a modular assembly for all measurements in open basins, channels and tanks in:

  • Wastewater treatment plants

  • Water works

  • Utilities of all industries

It forms a perfect team with the Flexdip CYH112 holder for simple sensor isolation.

The Flexdip team is suitable for all parameters, such as:

  • pH/ORP

  • Conductivity

  • Oxygen

  • Turbidity

  • Sludge level

  • Disinfection

  • UV photometry

  • Nutrients

Benefits

  • The modular system allows an optimum configuration for every measuring place

  • Fast installation and exchange of Memosens sensors with contactless plug-in head

  • Twist-free installation of fixed-cable sensors

  • Easy to install and to maintain

  • Robust design: Suitable for process pressures up to 6 bar (87 psi)
