Gammapilot FMG50 - Multifunctional transmitter

Radiometric level and density measurement Gammapilot FMG50

Compact transmitter for point level detection, continuous level, interface and density measurement

FMG50
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

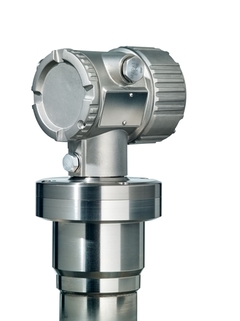

Gammapilot FMG50 stainless steel housing
  • F
  • L
  • E
  • X
©Endress+Hauser
Gammapilot FMG50 aluminum housing
  • F
  • L
  • E
  • X
©Endress+Hauser

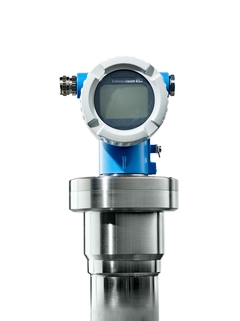

Gammapilot FMG50 aluminum housing
  • F
  • L
  • E
  • X
©Endress+Hauser
Gammapilot FMG50 stainless steel housing
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Process temperature

    Any

  • Process pressure / max. overpressure limit

    Any

  • Max. measurement distance

    Unlimited measuring range,
    Cascade

  • Accuracy

    +/-1%

  • Main wetted parts

    Non-contact

Field of application

The Gammapilot FMG50 compact transmitter is designed for non-contact point level detection, continuous level, interface and density measurement in liquids, solids, suspensions or sludges. As the first true 2-wire loop powered compact transmitter it minimizes engineering and installation efforts.

  • For all kinds of process vessels, like reactors, autoclaves, separators, acid tanks, cyclones

  • For liquids, solids, suspensions or sludges etc.

  • Extreme measuring conditions, for example corrosion, abrasion, viscosity, toxicity

  • Process temperature: No limitation (non-invasive)

  • Process pressure: No limitation (non-invasive)

  • Housing material: 316L, aluminum

  • International explosion protection certificates, SIL, overfill prevention WHG

Benefits

  • First real 2-wire loop-powered compact transmitter minimizes engineering and installation efforts

  • Reduced installation and engineering costs thanks to the first 2-wire loop powered compact transmitter

  • Increased plant safety, efficiency and availability even under extreme process and ambient conditions

  • Designed according to IEC 61508 with SIL2/3 approval for all measuring tasks

  • Reduced verification effort and minimized plant shut-downs due to state-of-art Heartbeat Technology

  • Usage in up to +80°C (+176°F) ambient temperature without additional cooling thanks to innovative sensor technology

  • Bluetooth® wireless technology for remote operation out of the radiation beam
