Prosonic FDU90 - Ultrasonic measurement

Ultrasonic measurement
Time-of-Flight
Prosonic FDU90

Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range up to 3m)

FDU90
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

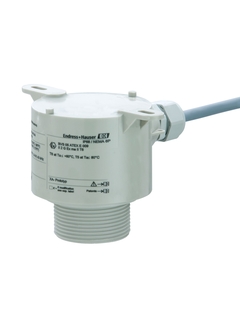

Prosonic FDU90
  • F
  • L
  • E
  • X
©Endress+Hauser

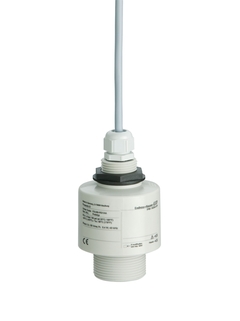

Prosonic FDU90
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    +/- 2mm + 0.17% of measured distance

  • Process temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process pressure / max. overpressure limit

    0.7 bar ... 4 bar abs
    (10 psi ... 58 psi)

  • Max. measurement distance

    Liquids: 3 m (9.8 ft),
    Solids: 1.2 m (3.9 ft)

  • Main wetted parts

    PVDF (IP68 / NEMA6P)

Field of application

The FDU90 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 3m (9.8ft), solids 1.2m (3.9ft).

Sensor for continuous, non-contact level measurement of fluids and bulk materials in silos, on belts, stockpiles and in crushers. Also flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.

  • Process connection: Thread

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: +0.7 to +4bar (+10 to +58psi)

  • Maximum measuring range: Liquids 3m (9.8ft), solids 1.2m (3.9ft)

  • Blocking distance: 0.07m (0.23ft)

  • International explosion protection certificates

Benefits

  • Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present

  • Hermetically welded PVDF sensor for highest chemical resistance

  • Suited for rough ambient conditions thanks to separate installation from the transmitter
    (up to 300m)

  • Reduced build-up formation because of the self-cleaning effect

  • Integrated automatic sensor detection for transmitters FMU90 /FMU95 for simple commissioning

  • Weather resistant and flood-proof (IP 68)

  • Integrated heating against a build-up of ice at the sensor (optional) ensures reliable measurement

Videos

  • Time-of-Flight measuring principle
