Name: Promag 51W
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

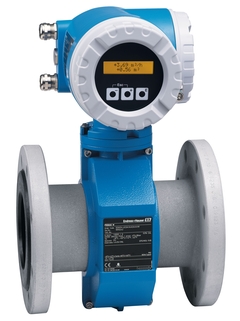

Electromagnetic flowmeter - Proline Promag 51W

Predecessor

Successor

F

L

E

X
Proline Promag W 400 / 5W4C

Versatile standard flowmeter for the water and wastewater industry
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Electromagnetic
Product headline

The sensor with degree of protection IP68 (Type 6P enclosure) combined with a transmitter for custody transfer. The specialist in the water and wastewater industry for the most demanding applications.
Sensor features

Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance-free – no moving parts. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure).
Transmitter features

Quality – designed for custody transfer; featuring worldwide recognized metrological approvals. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. Transmitter certified to MI‐001. Device in compact or remote version.
Nominal diameter range

DN 25...2000
1"...78"
Max. measurement error

±0.5%
±0.2% (optional)
Measuring range

0...110'000 m3/h
Max. process pressure

PN6...40
Medium temperature range

-20...+80°C
(-4...176°F)
Ambient temperature range

-20...+60°C
-40...+60°C (optional)
Degree of protection

IP 67 (NEMA 4x)
IP 68 (Nema 6P)
Display/Operation

Two line display with backlit
Push button
Outputs

4...20 mA
Pulse/Frequency
Status
Inputs

Status
Digital communication

HART
Hazardous area approvals

ATEX
Product safety

CE, C-tick, EAC marking
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025),
Custody transfer approvals: MI-001, PTB
Pressure approvals and certificates

PED

We value your privacy

We use cookies to enhance your browsing experience, collect statistics to optimize site functionality, and deliver tailored advertisements or content.

By selecting "Accept all", you consent to our use of cookies.
For further details please review our cookie policy .

Language:	English
Version:	01/07/2005
File size:	489.7 KB
File name:	TI058DEN.pdf

Language:	English
Version:	30/10/2010
File size:	2.4 MB
File name:	BA00137DEN_0310.pdf

	EN
01/03/2005
15/10/2003
01/04/2002

Language:	English
Version:	01/03/2005
File size:	4.9 MB
File name:	BA080DEN.pdf

	EN
01/03/2005
15/10/2003
01/04/2002

	EN
01/07/2005
15/10/2003

	EN
30/10/2010
01/07/2009

	EN
01/07/2009
01/09/2007

	EN
15/11/2018
18/11/2011

Promag 51W

Predecessor

Successor

Proline Promag W 400 / 5W4C

Measuring principle

Product headline

Sensor features

Transmitter features

Nominal diameter range

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Ambient temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Product safety

Metrological approvals and certificates

Pressure approvals and certificates

Back

Proline Promag 51P, 51W Technical Information

Proline Promag 51 HART Operating Instructions

Proline Promag 51 HART Operating Instructions

Proline Promag 51 HART Description of Device Functions

Proline Promag 51 Brief Operating Instructions

Replacing Power supply and display Installation Instructions

EA Replacing cover and O-ring

Repair kit cover remote version Installation Instructions

I/O-board, subprint, screening sheed Installation Instructions

Safety Instructions for Spare Parts Installation Instructions

Back

Kit P.s.b. 50/51/53 85-260VAC

Kit P.s.b. 50/51/53 20-55VAC 16-62VDC

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit com50/51/40/80/90 I+F/stat.in+outEx

Kit meas. amplifier PMAG 51 WEA

Kit meas. amplifier PMAG 51 EES

Kit meas. amplifier PMAG 51 SEA

Kit display mod 50/51/80/65 >=V1.06.00

Kit disp.50/51/80/90/65 Wall >=V1.06.00

Kit Bus/connec.b.5X/40/8X/65 field hous.

Kit Bus PCB/PCB carr.5X/8X/9X/65 wall

Kit connec. board In/Output Wall encl

Kit connec. board PMAG5X wall enclo.

Kit connection board D/E/L/P/S/W FS

Kit Termin.Block field hous. 5X/8X/40/65

Kit Termin.Block Wall encl. 5X/8X/9X/65

Kit S-Dat Promag 51 programmed

Kit Cover 5X/40/8X/65 with window

Kit Cover Connection terminal

Kit Cover Connection terminal

Repair kit cover, remote version

Kit 10 cable glands M20x1,5

Kit 10 extension M20x1.5/PG13,5

Kit 2 cable gland M20x1,5 reinf.Transm.

Kit 2 cable gland M20x1,5 reinf.Sensor

Kit Circuit board cpl field/SS-housing

Kit Ground terminal / Cover clamp

Kit Seal cover to Wall enclosure

Kit 10 Seal cover to field housing

Kit Bushing to field/SS-housing

Kit parts housing FS Stnd/HT

Kit parts housing compact Stnd/HT

Kit housing gasket FS Stnd/HT

Kit housing gasket compact Stnd/HT

Kit 2 exchange elect. PMAG F/W 4435

Kit Screw sealing PMAG 51

Kit 50 lead seals

Promag, cable remote version

Promag L/W/P/S,E, grounding cable kit

Promag, grounding disc/protection disc

Serviceinterface FXA193

Transmitter Promag, mounting set
